E Manufacturing was founded in 1969 as a Contract Machine Shop. At that time, E manufactured parts for x-ray equipment and naval ordinance specification work. As a result of this E developed a solid foundation in the manufacturing of intricate, close-tolerance parts out of a wide spectrum of materials.

Using the latest CNC equipment for turning, milling and large CNC machining, E is able to machine parts to over 22 feet by 6 foot high. The 23,000 foot air-conditioned facility ensures high quality work, and the ability to measure accurately over long distances and large dimensions.

E Manufacturing has over 30 years experience working with the following materials:

Aluminum
Stainless Steel
Copper Welding
Cast Iron
Plastics & Composites
Silver soldering
Steel Alloy & Low Carbon
Bearings, all types, copper & bronze
Ferrous & Non-Ferrous Fabricating

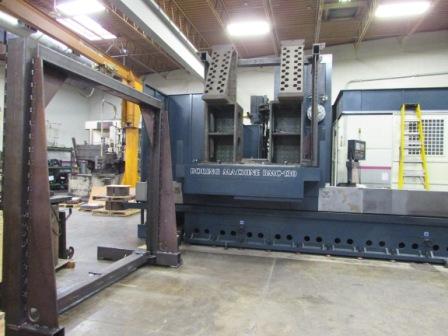

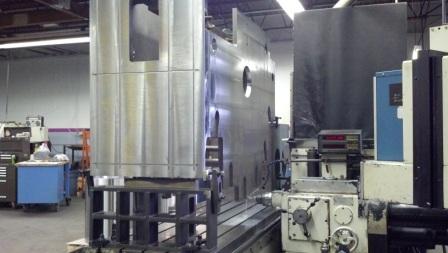

130 CNC HORIZONTAL BORING MILL
Fanuc 31i-MB CNC Control 4 axis simultaneous contouring
Heidenhain Scale feedback 118” x 90.50” x 63” capacity
B AXIS Rotary Table .001 Degree Scale feedback
50 HP 2500 RPM 50 Taper Spindle (60 Tool) Auto Tool Changer
33,000 Max Lb. Workload
WOTAN RAPID 0 - CNC HORIZONTAL MACHINING CENTER
40HP, spindle, 4 axis simultaneous contouring, 40" X 50" w/ continuous path rotary table, (40 Tool) Tool
changer with Pallet Shuttle System
WOTAN - CNC HORIZONTAL BORING MILL
4" bar, 5' vertical travel, 2' post (in & out) travel, 23' longitudinal travel, (1) 36" X 36" rotary table (1) 48" X
66" rotary table
MAZAK ULTRA 650 - CNC HORIZONTAL MACHINING CENTER
40" X 31" Travels with Dual Pallets, (40 Tool) Tool changer 35 HP, 7,000 RPM spindle, 1,000 IPM rapid
traverses, 1 DEG rotary indexing
MAZAK VTC-20 - CNC VERTICAL MACHINING CENTER
65" x 20" capacity, dual (24 tool) Tool changer (allows pallet type machining) 15 HP, 7,000 RPM spindle,
787 IPM rapid traverse, 4th axis full contouring rotary table
- 2 -
CINCINNATI SABRE 750 - CNC VERTICAL MACHINING CENTER
15" x 30" capacity, (22 Tool) Tool changer, 15HP 8000 RPM spindle, 480 IPM rapid traverse, 3 axis
simultaneous contouring with 4th axis contouring rotary table
JOHNFORD SV-32 - CNC VERTICAL MACHINING CENTER
31.5" x 20" capacity, (24 Tool) Tool changer, 15HP 8000 RPM spindle, 1181 IPM rapid traverse, 3 axis
simultaneous contouring with 10” Dia. 4th axis contouring rotary table
JOHNFORD SV-32 - CNC VERTICAL MACHINING CENTER
31.5" x 20" capacity, (24 Tool) Tool changer, 15HP 8000 RPM spindle, 1181 IPM rapid traverse, 3 axis
simultaneous contouring with 10” Dia. 4th axis contouring rotary table,
1000 PSI High Pressure Coolant System
JOHNFORD DMC – 1600 Double Column Machining Center
Fanuc 18i-MB CNC Control 3 axis simultaneous contouring
Heidenhain Scale feedback 63” x 51.2” x 31.5” capacity
25 HP 6000 RPM 50 Taper Spindle (40 Tool) Auto Tool Changer
1000 PSI High Pressure Coolant System
CINCINNATI CINTIMATIC HORIZONTAL 3-H-100 MACHINING CENTER
7 HP D.C. drive, Dynapath CNC control, 3 axis simultaneous contouring, 40" X 100" capacity, ± .0003
accuracy, 36” turntable
OMAX WATERJET 55100 MACHINING CENTER
CNC with 3 axis profiling, 55" x 100" travel, with 30HP 50,000PSI Pump
Tilt-A-Jet Head, +/-.002” Accuracy and Repeatability
OMAX WATERJET 60120 MACHINING CENTER
CNC with 3 axis profiling, 60" x 120" travel, with 50HP 55,000PSI Pump
Tilt-A-Jet Head, +/-.002” Accuracy and Repeatability
- 3 -
HAAS Mini Mill
Vertical Machining Center 20” x 16” x 14” 40 Taper 6000 RPM
(24 Tool) Auto Tool Changer 3 axis simultaneous contouring
HAAS Mini Mill
Vertical Machining Center 16” x 12” x 10” 40 Taper 6000 RPM
(10 Tool) Auto Tool Changer 3 axis simultaneous contouring
(3) LAGUN VERTICAL MILLS (Bridgeport type)
32" x 16" capacity, equipped with 3 axis acu-rite CNC control
(5) BRIDGEPORT TYPE MILLS
Equipped with 3 axis digital readouts, 26" X 12" range
GORTON UNIVERSAL MILL
VICTOR 1800 DCL - CNC PRECISION LATHE
18” X 40” 10 HP, 2500 RPM, Fanuc Control.
CINCINNATI TALON - CNC CONTROLLED LATHE
20.8" X 11.8" X 21.5" between centers, 20 HP, 2.0" Barfeed capacity, 4500 RPM, 600 IPM rapid
DAEWOO PUMA 230MSB – HIGH PERFORMANCE MILL_DRILL TURNING CENTER
21.65" X 11.42” X 19.37", 20 HP, 2.6" Barfeed capacity, with Sub Spindle and Live Tooling, 4500 RPM
Main, 6000 Sub, 787 IPM rapid, SMW Magazine Bar Loader
MAZAK MEGATURN A-12 - CNC VERTICAL TURNING LATHE
58" Cutting Dia. X 48" Height, 40 HP, Auto Tool changer (16 Tools), 350 RPM, 275 IPM rapid, Automatic
Measuring and Tool Offset Equipment.
- 4 -
MAZAK MEGATURN A-12 - CNC VERTICAL TURNING LATHE
58" Cutting Dia. X 48" Height, 40 HP, Auto Tool changer (16 Tools), 350 RPM, 275 IPM rapid, Automatic
Measuring and Tool Offset Equipment, with Dual Pallet Shuttle
YOU JI YV-1200-ATC+C - CNC VERTICAL TURNING LATHE
60" Max Cutting Dia. X 47" Height, 45 HP, 20 HP Live Tools,C Axis Contouring
16 Position Auto Tool changer, 350 RPM, 472 IPM rapid.
YOU JI YV-600 - CNC VERTICAL TURNING LATHE
34" Cutting Dia. X 24" Height, 30 HP, Auto Tool changer,
1500 RPM, 780 IPM rapid.
YOU JI YV-600 - CNC VERTICAL TURNING LATHE
34" Cutting Dia. X 24" Height, 30 HP, Auto Tool changer,
1500 RPM, 780 IPM rapid.
56" BULLARD CUTMASTER VTL
with Scan-O-Matic Tracer. 66" max swing (Digital Readouts)
MORISEKI - ENGINE LATHE
17" X 9" X 60" range, with Sony digital readout
M-T ENGINE LATHE (GAP)
21" (27) X 60" with digital readout
HARDINGE - PRECISION CHUCKING LATHE
HIGH SPEED - TURRET LATHE
5 C Collets
CASER - RADIAL DRILL PRESS
5 HP, 11" column X 38" travel
- 5 -
DRILL PRESS, 3 SPINDLE TABLE TYPE
DRILL PRESS, SINGLE SPINDLE, FLOOR TYPE
REID BROTHERS, ROLLERWAY, SURFACE GRINDER
6 X 18 capacity, 1 HP motor
MAKINO - TOOL AND CUTTER GRINDER
OLIVER - DRILL SHARPENER
CUTTERMASTER - ENDMILL SHARPENER
SUNNEN HONE
¼" thru 2 5/8 dia. range.
PACIFIC TRI-ACRO ¼" X 10' MECHANICAL SHEAR
With digital back gaging
PACIFIC TRI-ACRO 35 TON X 6' HYDRA-MECHANICAL PRESS BRAKE
With CNC Automec back gaging system
ERCOLINA CE-50 Angle Roll – Section Bender
2 ½” Capacity NC Controled
IRON WORKER-SCOTCHMAN 40 TON
POWERMATIC 20" VERTICAL BAND SAW WITH HYDRAULIC FEED
DAKE HORIZONTAL BANDSAW
- 6 -
12.5" x 17.75" capacity 0°-45° angular cutting
ABRASIVE PARTING SAW
10" diameter.
VIBRO DEBURRING MACHINE
3 cubic capacity
Ferrous and Non Ferrous Materials
ENGRAVING MACHINE FOR LARGE PANEL TYPE WORK
5 HP BUFFING ARBOR
3' X 5' GRANITE SURFACE PLATE
Complete inspection equipment
4' X 6' GRANITE SURFACE PLATE
J & L 14" OPTICAL COMPARATOR
ZEISS DCC 3 AXIS COORDINATE MEASURING MACHINE
Renishaw PH9C Probe Control, Calypso Inspection Software
Bridge Type 48" x 80" x 36" capacity accurate to ± .00002
DEA 3 AXIS COORDINATE MEASURING MACHINE
Computerized output 40" X 40" X 26" capacity accurate to ± .00002
NUMEREX 3 AXIS COORDINATE MEASURING MACHINE
- 7 -
Computerized output 15" X 12" X 10" capacity accurate to ± .00002
TRIMOS - DIGITAL HEIGHT CHECK
0 - 32" vertical travel, .0001 resolution
AutoCAD 2012 and 2012 Inventor 3D Engineering System
3D Drafting with 11” x 17” Laser Printing and up to “E” size plotting
Bob Cad CAD/CAM (4) Axis PROGRAMMING SYSTEM
DNC Communication to machines, Import/Export capability of DXF, CAD, IGES files.
Full graphics for program verification
5000 LB. TOWMOTOR
8000 LB. TOWMOTOR
WELDING EQUIPMENT
Acetylene Equipment
Mig 600 AMP w/ overhead boom
Mig 450 AMP
Tig 300 AMP
Variable speed 30" turntable
5' X 12' Acorn Table
5' X 10' Table
